Moving Head Lihgt / Staeg Lihgt / LED Par Light / Theatrical Lighting
WhatsApp & WeChat ：0086 13609737256 / Tel：0086 13609737256

|
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | JIALE |
| Certification: | CE & RoHS |
| Model Number: | JL-SJH3 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US$560/pcs |
| Packaging Details: | carton box or flight case as your requirements |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 2000pcs/month |
| Winch Power: | 350 W | Ring Diameter: | Ring Outer Diameter: 120cm, Ring Inner Diameter: 100cm; |
|---|---|---|---|
| Light Source: | 36pcs 20W RGBW 4in1 Cree LED | Lifting Height: | 0-3m |
| Lifting Speed: | 0-0.5m/s With Power Off Protection | Control Mode: | DMX 512 |
| Channel: | 13CH/153CH | Connection: | 3-pin XLR DMX |

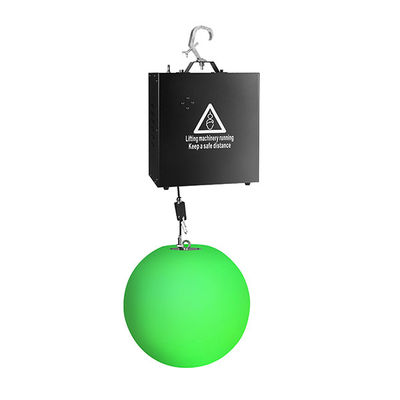

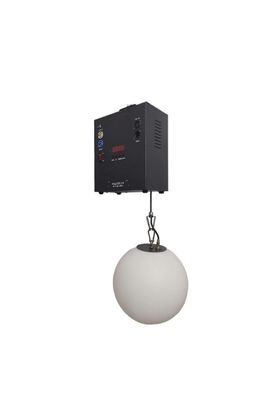

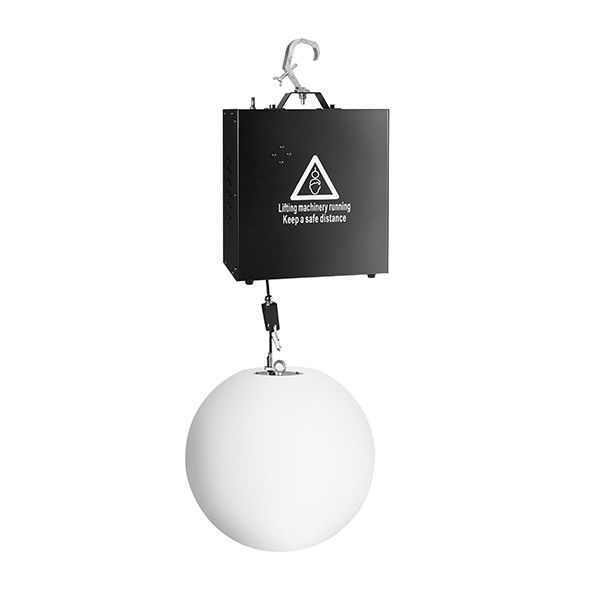

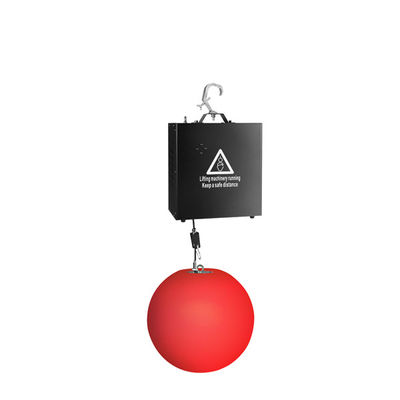

3m Round LED lifting ball DMX Winch LED Kinetic Light
3m Round LED lifting ball DMX Winch LED Kinetic Light
3m Round LED lifting ball DMX Winch LED Kinetic Light
Technical data:
|
Voltage: AC100-240V, 50-60Hz Total power: 720w Light Source: 36pcs 20W RGBW 4in1 Cree LED; Color: 2800K-10000K Working life: 50000 hours Control mode: DMX, sound control, auto run; Channel: 13/153CH Function: support RDM, running horse effect, CN/EN display; Strobe: 1-25Hz; Dimming: 0-100% (16 bit) dimming, no flicker; Ring outer diameter: 120cm, ring inner diameter: 100cm; Cooling system: smart heat-sink system to monitor temperature. If over temperature, it will be protect automatically. And it design smart fan, which avoid LED broken. Net weight: 10kg Carton size: 130*130*35cm/pcs, 18kg
Voltage: 100v-240v AC, 50- 60hz; Total power:350 w Main engine power: 90w Main engine size: 211.7x131.2x308.1mm; Main engine Net weight: 6.5kg(include spare parts, weight is 7kg) 1 ring light need 3 main engine, so net weight: 7kg*3=21kg; Lifting height: 0-3m, 0-6mS Lifting speed: 0-0.7m/s Main engine hanging weight: 2.5-3kg, it has power off protection. Main engine machine display: LCD display screen Main engine machine housing shell: power coating black or white color for option; Cable voltage between ball and main engine machine: DC24V; Power connector: power in&out Signal connector: 3pins DMX in&out Carton size: 43*36*46cm/2pcs, 18.65kg |
