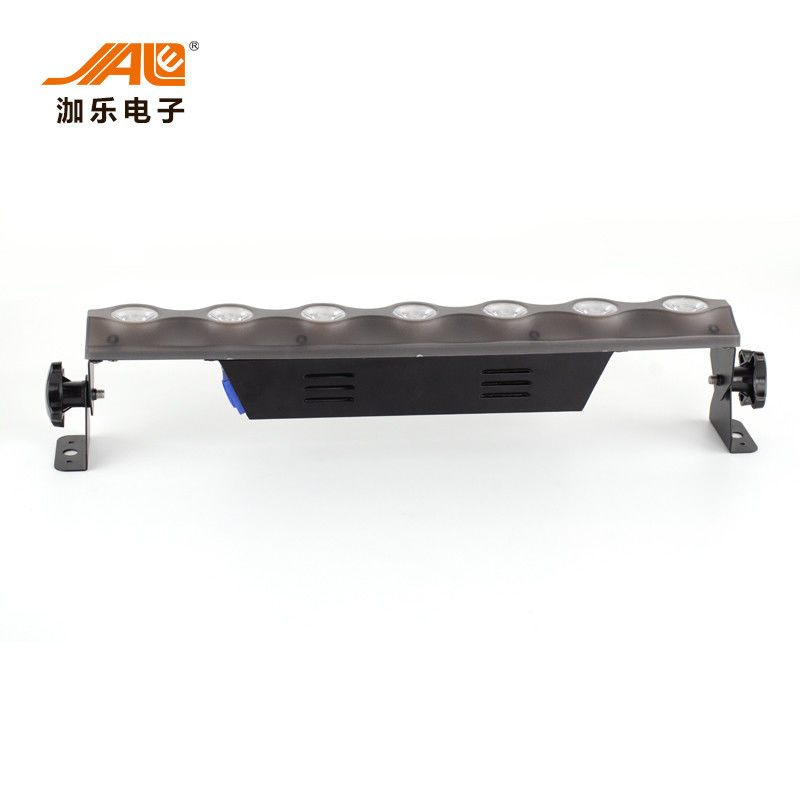

Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle

Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle

Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle
Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle
Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle
Product Details:
Place of Origin: guangdong
Brand Name: Jiale
Certification: ce rohs
Model Number: JL-XQ7-3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: normal carton and flight case
Delivery Time: depends on qty
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Color: RGBW Input Power: 100~240V AC 50~60Hz Wide Voltage
Power: 30W LED Light Source: The Main Light Is 7 3W Imported Ke Rui Warm White Lamp Beads, 28 Full Color RGB Patch Lamp Beads;
Control Mode: Standard DMX512 Protocol, Built-in 31 Effects Program, With Voice Control Self-propelled Mode; Excellent Sound Control Effect The Main Light Bead Beam Angle: 6 Degrees, Radiation Range: 8 Degrees
Dimming Frequency: FLICKER FREE Up To 10KHz Dimming Refresh PWM Frequency, Camera Shooting Without Flicker
Highlight:

led wall washers

,

led strip wall washer





Jiale Horse Racing Single Control RGBW Wall Washer RGB Light Housing

Guangzhou JIALE stage Lighting Factory has been engaged in manufacturing stage lights
for many years. We serve domestic and foreign customers with solid industry base and years
of experiences. Our mission is to provide Excellent lighting solutions and support for Stage,Disco,Event,
Weddings from all over the world .







7*3W wall washer light
1. Input power: 100~240V AC 50~60Hz wide voltage;
2. Power: 30W;
3, LED light source: the main light is 7 3W imported Ke Rui warm white lamp beads, 28 full color RGB patch lamp beads;
4, control mode: standard DMX512 protocol, built-in 31 effects program, with voice control self-propelled mode; excellent sound control effect
5, the main light bead beam angle: 6 degrees, radiation range: 8 degrees;
6. Dimming frequency: FLICKER FREE Up to 10KHz dimming refresh PWM frequency, camera shooting without flicker.
N.W: 2Kg
G.W:2.5Kg









1, the power supply
Input voltage: AC90-245V/50-60 Hz
Rated power: 30 (W)

2, light source
Color: 7*3W CREE warm white lamp beads, 28 full color RGB patch lights;
Current: 600-700mA
Light source life: 100,000 hours


3, control mode
control mode: standard DMX512,Built-in 31 programs effects,with sound Automatic, good sound control effect
Channel: Ch6/Ch8/Ch32 (digital display)
Main light bead beam angle: 6 degrees, radiation range: 8 degrees;

4. Appearance:
Housing: aluminum alloy + iron + plastic
Net weight: 1.7KG / pcs
Gross weight: 2KG/pcs
Colour: Black


Cooling system: fan
Certification: CE, ROHS
Protection level: IP33
Working environment: -20℃~45℃
Main light Beam angle: 6 degrees, radiation range: 8 degrees
6)Dimming frequency: FLICKER FREE Up to 10KHz dimming, refresh PWM frequency, camera shooting without flicker.

Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 0Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 1Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 2Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 3Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 4Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 5Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 6Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 7Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 8Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 9Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 10Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 11



Jiale Horse Racing Single Control RGBW Wall Washer 6 Degrees Beam Angle 12



Payment and shipment







FAQ:



Q1. Are you a manufacturer or trading company?


A: We are a manufacturer with 2500sqm2,about 60 workers.



Q2. Can we buy sample for testing?


A: Yes,sample order is welcomed.



Q3: What is the warranty for our lamps?


A: 1-2 years warranty is available.



Q4: How do you ensure the quality?


A: We get three QC processes:



1. For raw materials



2. During the half of production



3. Final QC test one by one after aging 12 hours.



Q5:  How to do if any quality problems on our side in the warranty time?


A: First, take pictures or videos as proof and send to us.We will replace new ones for free.



Q6: What is the lead time for sample and mass order


A: The approximate shipping time for samples is 3-5 days ,and 4-6 weeks for mass order.



Q7: OEM OR ODM accepted?


A:Yes,we can do OEM & ODM,logo on the light or package both are available.



Q8: Is there any cheap shipping cost to import to our country?


A: For small order,express will be the best.And for bulk order,ship by sea is best but take much time.For urgent orders,ship by air is the best.
