7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control

7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control

7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control
7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control
7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control
Product Details:
Place of Origin: Foshan Guangdong China
Brand Name: JIALE
Certification: CE & RoHS
Model Number: JL-XQ7X30W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$140/pcs
Packaging Details: carton box or flight case as your requirements
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Material: Aluminum Housing Input Voltage: Ac90-245v / 50-60hz
Rated Power: 201W Light Source: 7x30W
Light Angle: 12/24/60 Degree Life Time: 100000h
Channel: 8/11/32CH

7pcs 30w 4in1 waterproof pixel dot control wash wall bar
7pcs 30w 4in1 waterproof pixel dot control wash wall bar
7pcs 30w 4in1 waterproof pixel dot control wash wall bar
7pcs 30w 4in1 waterproof pixel dot control wash wall bar
7pcs 30w 4in1 waterproof pixel dot control wash wall bar
7pcs 30w 4in1 waterproof pixel dot control wash wall bar
7pcs 30w 4in1 waterproof pixel dot control wash wall bar














































technical data:

Item number:JL-XQ7-30S

Input voltage: ac90-245v / 50-60hz

Rated power: 220 (W)

Power connection: power input and output

dmx connection: dmx input and dmx output

Light source:10x10W Warm white/RGBW 4in1

Light Angle:12/24/60 degree

Life time:10 0 000 h

Control: DMX512 master-slave control, auto,sound, gradual change, Jump change

Channel:8/11/32 channels (digital display)

Dimming: linear dimming effect (0-100% 16Bi dimming)

Function effect: shaking the display board to control static, custom mode, 0-25Hz strobe

Housing: die-cast aluminum

Color:black or white

Waterproof and dustproof mirror: tempered glass

IP:IP65

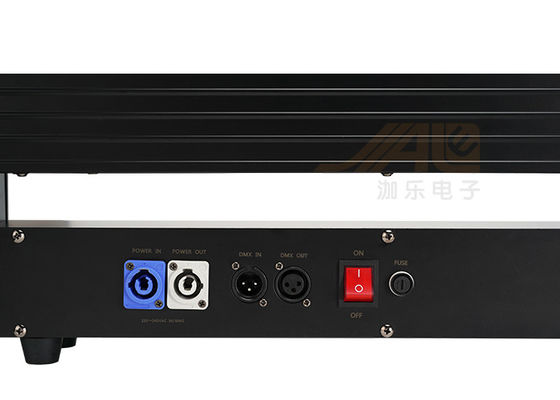

Lighting wide receiver: Power line in and out, dmx in and out

Cooling System: fan

IP65

Working environment:-20℃~45

Package size(Normal carton):69*11*20CM/PCS

N.W.:6.5kg/pcs

G.W.:8.5kg/pcs





Product details

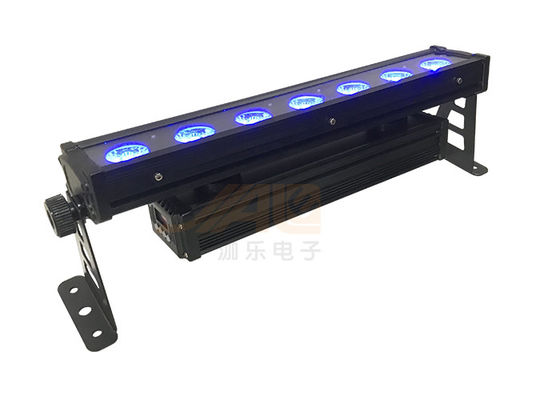

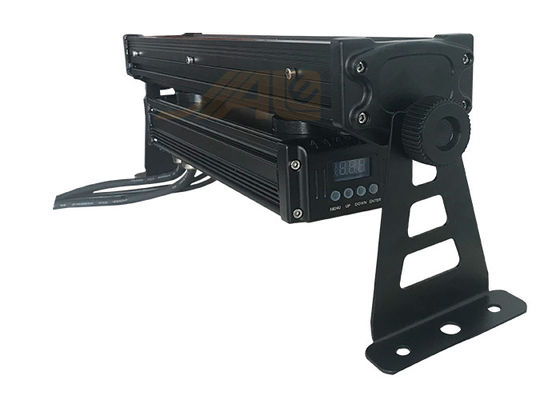

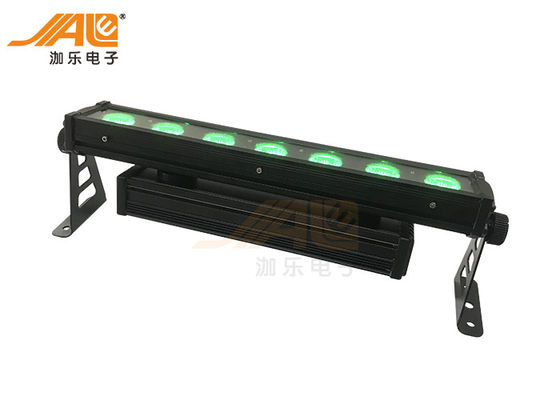

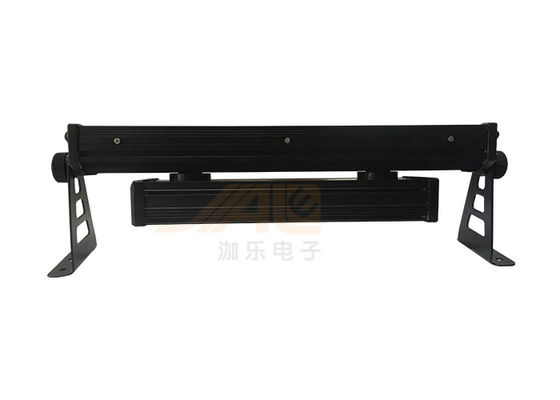

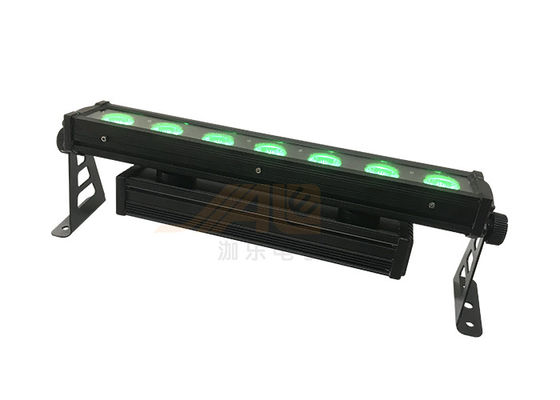

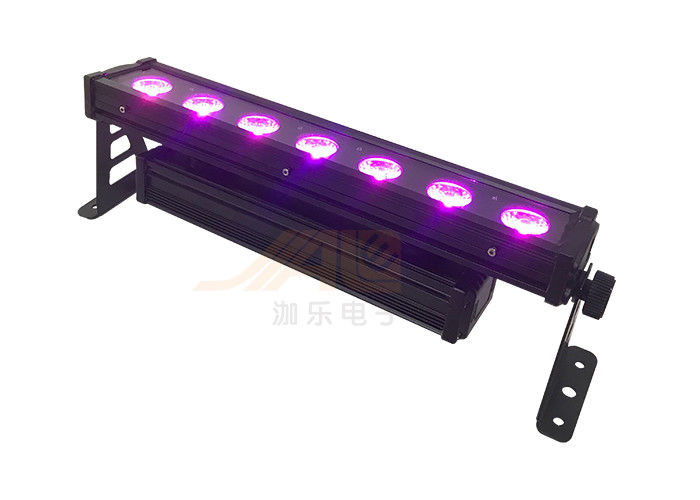

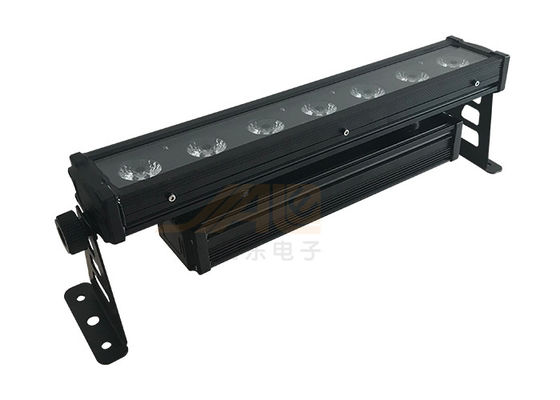

7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control 4

























































































7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control 5





7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control 6























































































7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control 7

























































































7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control 8



































































7pcs 30w 4in1 waterproof pixel dot control wash wall bar IP65 each LED individual control 9
