Moving Head Lihgt / Staeg Lihgt / LED Par Light / Theatrical Lighting
WhatsApp & WeChat ：0086 13609737256 / Tel：0086 13609737256
 |
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | JIALE |
| Certification: | CE & RoHS |
| Model Number: | JL-PBD100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 126USD |
| Packaging Details: | carton box |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs/month |
| VDC: | AC90-245V/50-60 Hz | Scene: | Home\Theater |
|---|---|---|---|
| CCT: | Warm White+cold White | Pitch Angle: | ±90° |
| Deadline: | 50000h | LEDs: | 480pcs *0.5w 2835 LED |
| TEMP: | 3200K+5600K | Work: | 100w |
| Protection: | IP20 | Rendering: | CRI>95 |
Technical Specification:
1.Voltage: AC100-245V/50-60 Hz
2.Power: 100 (W)
3.Power connection: Nutrick power socket set, power input and output
4.Light source: imported LED chips;
5.LEDs:480Pcs *0.5w WW+WC ;
6.Color temperature preset: 3200K+5600K
7.Color temperature: adjustable. The rated power will not decrease after the color temperature is selected, and the selected color temperature will not change when adjusting the brightness;
8.Dimming: 16Bits electronic linear dimming 0～100%, no glare, 16k/Hz dimming frequency; fine dimming function; four dimming curves are optional;
9.Cooling system: natural air cooling, zero noise. The temperature rise does not exceed 30℃, intelligent automatic temperature adjustment system;
10.Color temperature deviation: ±100K
11.Service life: 50000h
12. Color rendering: CRI﹥95
13. Manual dimming: 0%～100%
14. Control: 3-pin DMX512
15. Number of channels: 2/3CH
16. RDM function

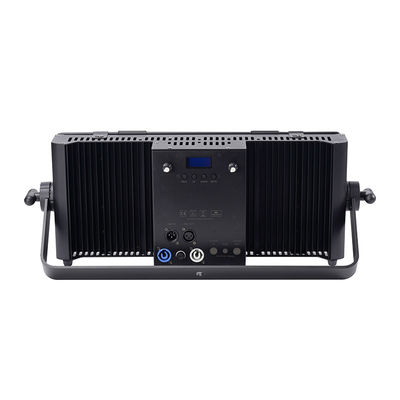

17. Working interface: DMX function status LED digital display
18. Use environment: -20℃～40℃

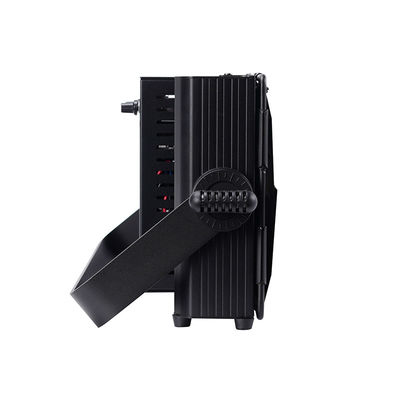

19. Pitch angle: ±90°
20. Degree of protection: IP23
21. Cover Philip: Four-leaf type
