Moving Head Lihgt / Staeg Lihgt / LED Par Light / Theatrical Lighting
WhatsApp & WeChat ：0086 13609737256 / Tel：0086 13609737256
 |
| Place of Origin: | Foshan, Guangdong, China |
| Brand Name: | JIALE |
| Certification: | CE & RoHS |
| Model Number: | JL-PBD400 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 190USD |
| Packaging Details: | carton box |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs/month |
| VDC: | AC90-245V/50-60 Hz | Scene: | Home\Theater |
|---|---|---|---|
| CCT: | Warm White+cold White | Pitch Angle: | ±90° |
| Deadline: | 50000h | LEDs: | 960pcs*0.5W 2835 LED WW+WC |
| TEMP: | 3200K+5600K | Work: | 400w |
| Protection: | IP20 | Rendering: | CRI>95 |
Technical parameter

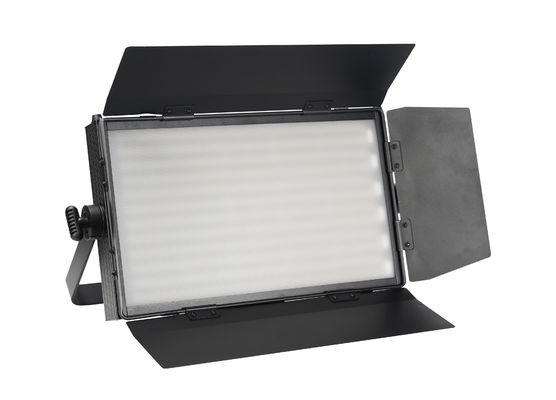

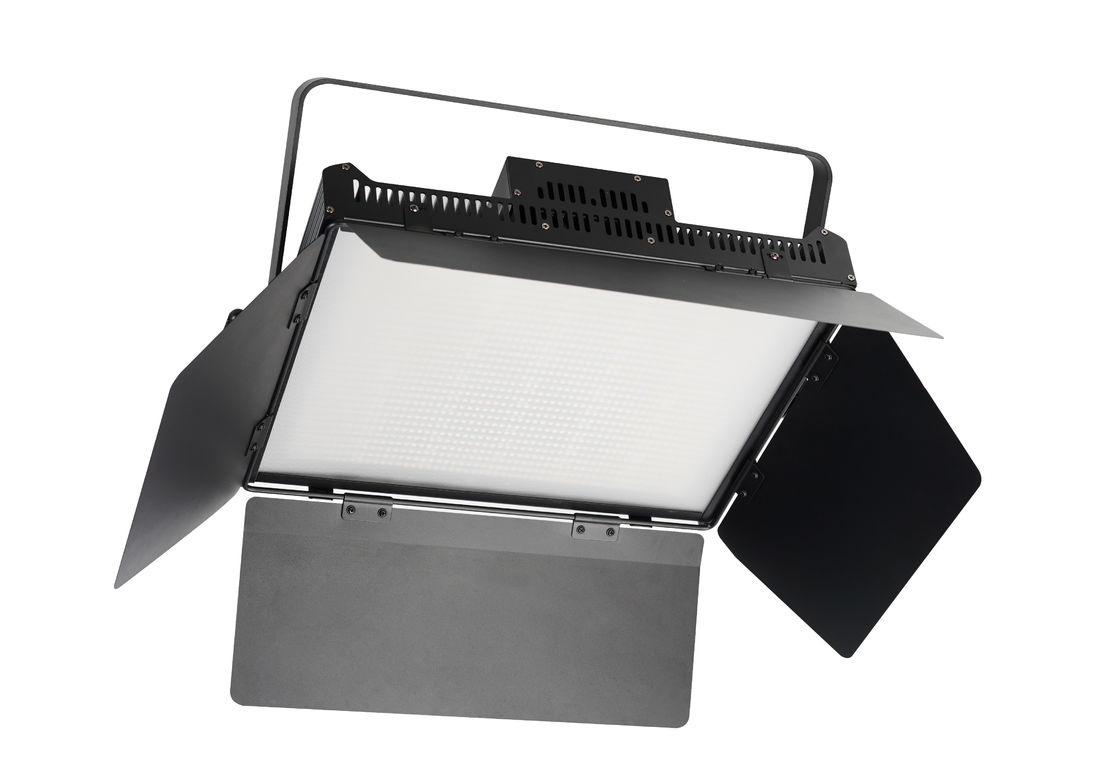

product name: 400W 3200K 5600K Digital Flat Plate Soft Light Producer
Voltage: AC100 ~ 230V, 50/60Hz;
Rated power: 400W;
Light source: 16000 high brightness 0.5W LED lamp beads; Warm + cold light LED: 3200K--8000PCS/5600K--800PCS;
Color temperature: 3200K ~ 5600K adjustable. The rated power does not decrease after the color temperature is selected, and the selected color temperature does not change when adjusting brightness;
Color rendering index: CRI95;
Spot Angle: 120°;
Dimming effect: 16Bits 0 ~ 100% linear dimming, no glare; Dimming frequency 16K /Hz
Dimming mode: four dimming curves are available; Fine tuning optical function;
With RDM protocol function;
Control mode: GB standard DMX512 signal + manual adjustment;
Channel mode: 2 control channel modes, 2CH/3CH mode;
Control signal: DMX 3Pin male and female seat;
Power socket: Power Connector input/output;
Heat dissipation system: natural air cooling, zero noise. 65℃ temperature control protection, temperature rise does not exceed 30℃, intelligent automatic temperature regulation system;
Shading blade: four;
Working environment: -10°C ~ 40°C;
Protection class: IP23;
Aluminum profile housing;

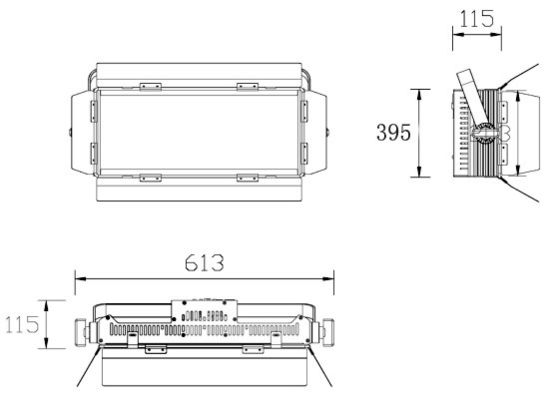

Product size: 613x115x395mm
Weight: 12kg
Flat Plate Soft Light Apply into all kind of TV Station, Hd Studio, Smart Video HD Conference Room,Hd Smart Photograph Studio, Multi-function Hall Surface Light, Top Light, Side Light, etc.
